Used Yaskawa AR1440 6-axis automatic welding robot and fast and accurate arc welding robot with YRC1000 Robot Controller

Xiangjing (Shanghai) M&E Technology Co., Ltd
Contact Now

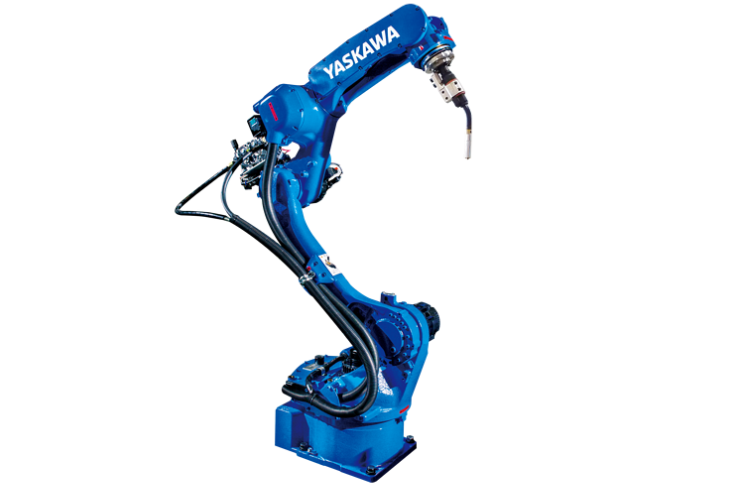

Used Yaskawa AR1440 6-axis automatic welding robot and fast and accurate arc welding robot with YRC1000 Robot Controller

  • 1
  • 2

Brand Name : Yaskawa

Model Number : AR1440

Place of Origin : Japan

MOQ : 1set

Price : Negotiable

Supply Ability : 50set per month

Delivery Time : 2 weeks

Model : AR1440

Brand : Yaskawa

Payload : 20KG

Reach : 1440mm

Contact Now

Used Yaskawa AR1440 6-axis automatic welding robot and fast and accurate arc welding robot with YRC1000 Robot Controller

Main Specifications:

Maximum reach:1440 mm
Maximum payload:12 kg
Number of axes:6
Protection rating:IP40

Key Benefits
1.Increased payload, axis speeds and wrist inertia improve throughput and quality
2.Streamlined arm design reduces interference
3.Expanded wrist range improvesapplication flexibility
4.Single robot-to-controller cableconnection enables fast setup
5.Proven torch cable reliability;backed by industry's first two-year torch cable warranty.

Features

. Slim, fast, six-axis AR1 440 welding robot achieves unrivaled welding performance and productivity.
. Axis composite speed increased by 11 % over previous model.
· 12 kg payload supports a wide variety of motorized torches andsensors.
· Slim profile design allows close proximity placement of robots for high-density work cells.
. Contoured arm allows easy access to parts in tight spots and avoids potential interference with fixtures.
· Symmetric wrist profile, with ample range, provides equal torch access to both sides of part.
. High allowable moment and inertia ratings provide wrist rigidity and consistent weld quality.
.50mm thru-hole for torch cabling, hoses and sensor wires reducescable interference and wear.
. Minimal U-axis cable protrusion and S-axis internal cable managementprolongs cable life and maximizespart access.
. Optimized feeder mounting area on arm reduces equipment interference.
. Single power and control cable reduces wiring time and increases work efficiency.
. New robot harness designfor improved diagnostics andmaintenance.
. Home position data can be saved without battery connection for easy maintenance.
. Variety of advanced, exclusiveprogramming functions maximizeweld quality and speed.
. Floor-mounted model is standard. Wall-, tilt- or ceiling-mounted versions are available.
. Compact YRC controller utilizes the lightweight standard teach pendant with intuitive programing.

Used Yaskawa AR1440 6-axis automatic welding robot and fast and accurate arc welding robot with YRC1000 Robot Controller

Product Description
Product Name 6-axis AR1440 arc welding robot providing fast and accurate performance to boost productivity supplier from China
Model AR1440
Application 6 axis welding robot;welding robot China;robotic arms for weld;
Maximum reach 1440 mm
Maximum payload 12 kg
Pose repeatability (ISO 9283) ± 0.06 mm
Number of axes 6
Mounting position Floor mounted
Footprint 620 mm x 450 mm
Weight 150 kg
Protection rating IP40
Controller YRC1000
Detailed Images

Used Yaskawa AR1440 6-axis automatic welding robot and fast and accurate arc welding robot with YRC1000 Robot Controller

Used Yaskawa AR1440 6-axis automatic welding robot and fast and accurate arc welding robot with YRC1000 Robot Controller

Used Yaskawa AR1440 6-axis automatic welding robot and fast and accurate arc welding robot with YRC1000 Robot Controller

Our Services

1.Swift delivery

For common parts, we can deliver the goods within 3 days

2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.
